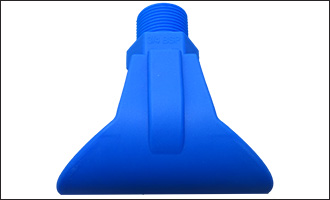

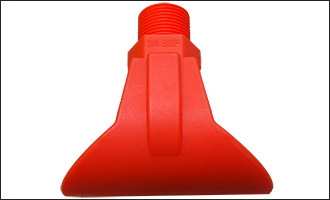

    Polyurethane Spray Nozzle



    Polyurethane Spray Nozzle
    Polyurethane Spray Nozzle

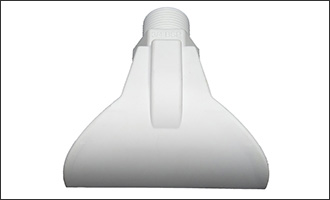

    3mm PD3 White Spray Nozzle

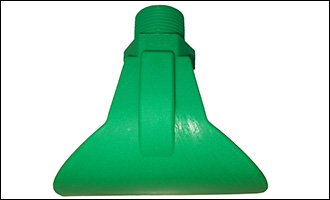

    Green PD5 Spray Nozzle
    3mm PD3 White Spray Nozzle 3/4" BSP 5mm PD5 Green Spray Nozzle 3/4" BSP

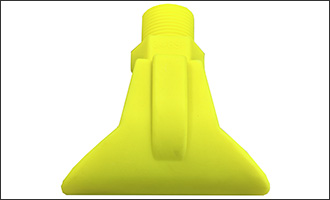

    3/4" BSP Spray Nozzle 9mm PD9 Yellow Spray Nozzle 3/4" BSP
    7mm PD7 Blue Spray Nozzle 3/4" BSP 9mm PD9 Yellow Spray Nozzle 3/4" BSP

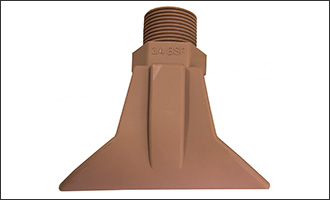

    11mm PD11 Red Spray Nozzle 3/4" BSP 13mm PD13 Brown Spray Nozzle 3/4" BSP
    11mm PD11 Red Spray Nozzle 3/4" BSP 13mm PD13 Brown Spray Nozzle 3/4" BSP

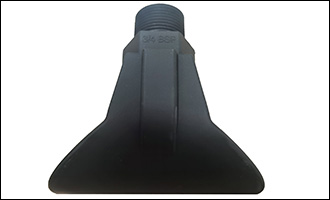

    16mm PD16 Black Spray Nozzle
    16mm PD16 Black Spray Nozzle 3/4" BSP



    Poly Spray Nozzles are used specifically for practical screening applications. They are tough, corrosion and abrasion resistant and will not block easily. The fan shapped spray forms a curtain of water that distributes a high volume of water at 120 degrees evenly for a variety of applications over the production or screening surface. However, Kosin recommends installation of a protective strainer with approximately 1.0 mm aperture mesh at the water supply inlet.

    Features:

    • Designed for wet screening and dust control applications
    • Standard 3/4" BSPM Couplings
    • These rugged and reliable polyurethane spray nozzles will stay firmly fixed to your spray bar.
    • The integral, molded-in spray orifice delivers dependable, constant spray volume and spray width to the material bed
    • Fans cannot be separated from the nozzle. Your screens will never be ruined by direct spray because of a displaced fan

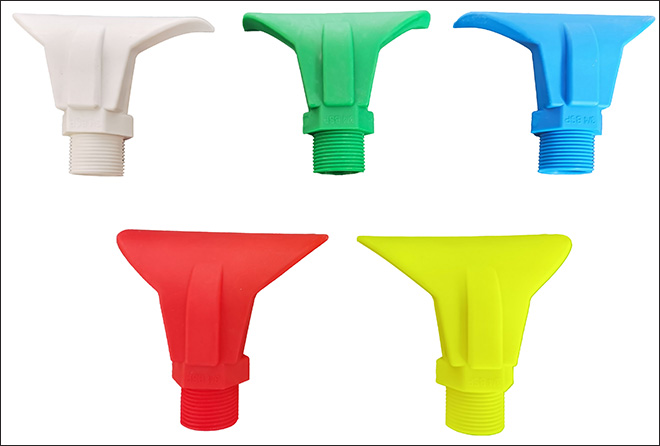

    Available sizes :

    • White: 3mm
    • Green: 5mm
    • Blue: 7mm
    • Yellow: 9mm
    • Red: 11mm
    • Brown: 13mm
    • Black: 16mm

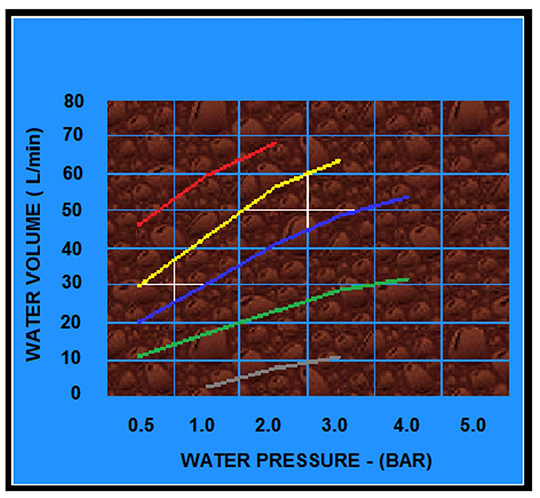

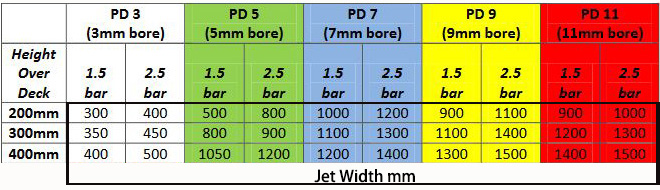

    Date Sheet:

    Contact Us For Details, or Inform Your Specific Request.
