Polyurethane Vee/Diagonal Plough Blade


Poly Diagonal Belt Plough Blades Replacement Poly Vee&Plough Blades

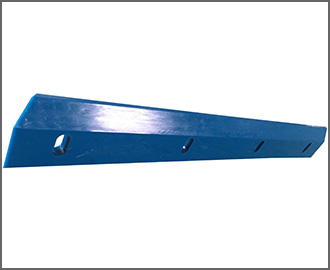

Poly Diagonal Belt Plough Blades

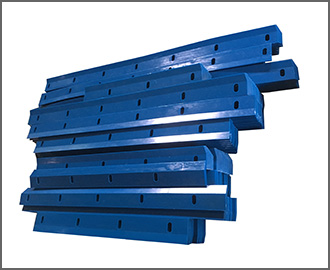

Replacement Poly Vee&Plough Blades

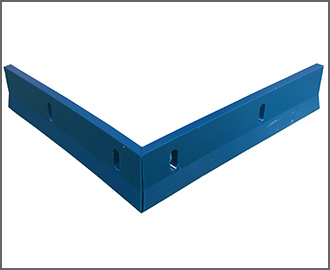

Polyurethane V-Plow Blades Polyurethane Vee Plough Blade
Polyurethane V-Plow Blades
Polyurethane Vee Plough Blade

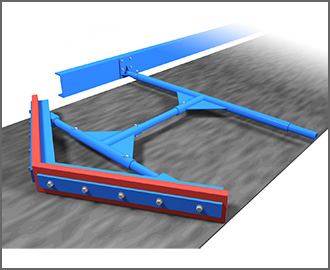

Vee Plough

An effective solution for protecting your tail pulley - as well as your mechanical splices and lagging - the V-Plow is uniquely designed to clean the inside (clean side) of your return belt. Positioned just prior to your tail pulley or just in front of Gravity Take ups, Vee plough will deflect material from the belt ensuring it does not go around the tail pulley causing damage to both the pulley and your belt. Vee Plough has highly durable urethane blades, which fits virtually any conveyor structure.

Features:

  • Simultaneously discharges debris to both sides of belt
  • Self-adjusting blade - the blade floats on the belt and self-adjusts as it wears
  • Unique blade adjuster - turnbuckle-type adjuster allows the blade to be accurately positioned to the belt
  • Easy to install - comes fully assembled and can be placed right into position on the conveyor
  • Highly durable urethane blades.



Diagonal Plough

The Diagonal Plough is a versatile, economical solution for protecting the tail pulley, drive pulley, or gravity take-up pulleys from carryback materials. The Diagonal plough cleans in front of the belt pulley. The Diagonal Plough is installed on a 45 degree angle across the belt, keeping at bay all types of debris that could cause damage to the belt, mechanical splice, lagging or pulley. The Diagonal Plough is easy to assemble and can be placed exactly in the position required on the conveyor.

Features:

  • Discharges debris to one side of belt
  • Blade is installed in a fixed position, eliminating any bouncing problems
  • Easy to install - comes fully assembled and can be placed right into position on the conveyor
  • Highly durable urethane blades.



Contact Us For Details, or Inform Your Specific Request.
